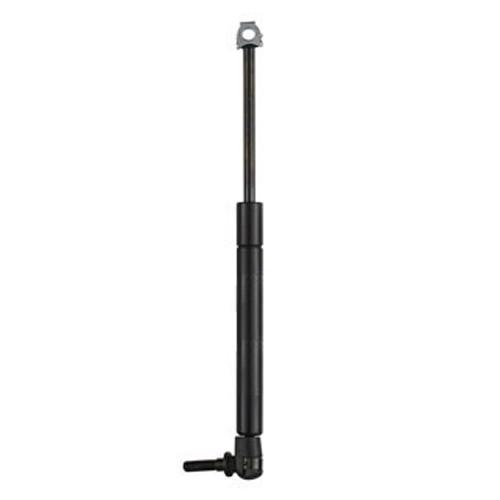

Mercedes Car Door Nitrogen Gas Spring , 130N Hood Lift Support
113000013 Mercedes gas struts/gas spring/hood lift support
Specifications
1, Shaft:chrome / QPQ
2, 2 years guarantee.
3, easy install
4, we are a factory
5, high quality
113000013 Mercedes gas struts/gas spring/hood lift support
1998-2010
Mercedes Smart
OEM:113000013
Force:130n
This separate the oil from the gas inside the spring ,
so that the damping can be very closely controlled in either compression or extension .
specifications:
Usage:car door,tailgate, bonnet / hood
Product description:
Cylinder material: Steel, SS304, SS316
Shaft material: Steel, SS304, SS316
Cylinder finishing: Black ,Silver or other color
Shaft finishing: Chrome /QPQ
Tube diameter:15mm
Rod diameter:6mm
Salt spray time: achieving more than 72 hours.
Fatigue test: decay less than 9% after 20,000 cycles.
Service life: at least 50,000 cycles in normal environment.
Working temperature range: –30 °C - +80 °C.
Main Specifications and Dimensions:
| Application | Type | Model | Length | Stroke | Rod | Tube | F1 | End fitting |
| Car boot car bonnet vehicle tailgate | YQ | 360/130 aa 10/22 465/190 aa 10/22 675/270 aa 10/22 745/235 UU 12/26 | 360 465 675 745 | 130 190 270 235 | 8 8 10 12 | 18 18 22 26 | custom | ball |
Brief introduction:
tailgate gas spring also called support bar, it can play a role in support, cushioning, there is no stop at trip.
It used comfortable, convenient installation. Mainly used in aircraft, automobile, engineering machinery, furniture and office supplies industry.
Delivery:
1000 PCS, 7 days.
Shipment: We can accept your appionted forwarder.
113000013 Mercedes gas struts/gas spring/hood lift support
