Furniture Gas Springs And Dampers , Nitrogen Gas Lift For Bed
lift gas springs/bed lift gas struts
Specifications
1, Shaft:chrome/QPQ
2, 2 years guarantee.
3, easy install
4, we are a factory
5, OEM is welcome
Lift gas springs
High quality gas spring for industrial/machinery lid
This separate the oil from the gas inside the spring ,
so that the damping can be very closely controlled in either compression or extension .
Specifications:
Usage:
Product description:
Cylinder material: Steel, SS304, SS316
Shaft material: Steel, SS304, SS316
Cylinder finishing: Black ,Silver or other color
Shaft finishing: Chrome/QPQ
Tube diameter:15mm
Rod diameter:6mm Force:500N
Extended length:215mm
Salt spray time: achieving more than 72 hours.
Fatigue test: decay less than 9% after 20,000 cycles.
Service life: at least 50,000 cycles in normal environment.
Working temperature range: –30 °C - +80 °C.
Main Specifications and Dimensions:
All the product can be customized.
| D tube diameter | D rod diameter | M1 thread | M2 thread | F1 Min extention force |
| 18 | 8 | M10*1 | M8/M10*1 | 50-500N |
| 22 | 10 | M10*1 | M8/M10*1 | 100-1000N |
| 26 | 10 | M10*1 | M8/M10*1 | 100-1000N |
| 28 | 10or12 | M10*1 | M8/M10*1 | 200-1500N |
Gas:Nitrogen filled inside.
Color:Black ,silver or as the client's request
Connector:Ball joint ,metal eye ,clevis and so on
Material:Stainless steel
Quality: We can provide fatigue test report.Our product can open and close 10000 times.
Not leak oil,Our paint passed ROHS test.
No noise ,smooth operation,safe and easy installation.
Meeting ISO9000 international standard
Packing:1 piece in one plastic bag,then 50-100pcs in a carton
Marking:We can mark your logo as request.
No specified,we will mark our logo.
Delivery Term:EXW & FOB & CIF
Delivery Lead Time :7 working days after get your deposit.
Payment: & Paypal & T/T
Sample:We can provide 2 free sample
Warranty: With one year guarantee except man made trouble
Brief introduction:

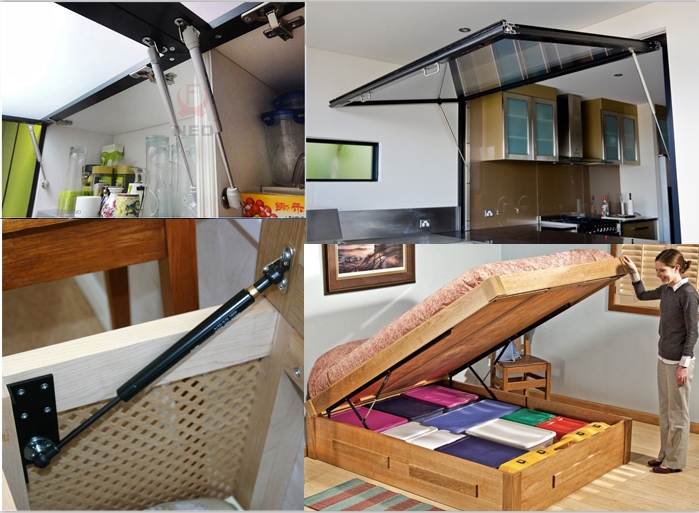

lift gas springa also called gas struts, it can play a role in support, cushioning, there is no stop at trip. It used comfortable, convenient installation. Mainly used in aircraft, automobile, engineering machinery, furniture and office supplies industry.
Delivery:
1000 PCS, 7 days.
Shipment: We can accept your appionted forwarder.
