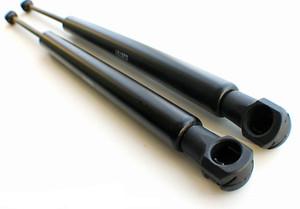

Toyota Yaris Tailgate Replacement Gas Struts Cabinet Gas Lift Spring
Toyota Yaris Tailgate Gas Struts /Spring
Specifications
1, Toyota STAY ASSY, BACK DOOR Gas Spring, boot / cargo area 1999/04
2, 2 years guarantee.
3, easy install
4, factory,oem welcome
Toyota Yaris Tailgate Gas Struts / Spring,
Toyota STAY ASSY, BACK DOOR Gas Spring, boot/cargo area 1999/04
This separate the oil from the gas inside the spring ,
so that the damping can be very closely controlled in either compression or extension .
Specifications:
Usage:cardoor,tailgate, bonnet / hood
Product description:
Cylinder material: Steel, SS304, SS316
Shaft material: Steel, SS304, SS316
Cylinder finishing: Black ,Silver or other color
Shaft finishing: Chrome/QPQ
Tube diameter:18mm
Rod diameter:8mm Force:245N
Extended length:500MM
Salt spray time: achieving more than 72 hours.
Fatigue test: decay less than 9% after 20,000 cycles.
Service life: at least 50,000 cycles in normal environment.
Working temperature range: –30 °C - +80 °C.
Main Specifications and Dimensions
| MODEL | YIL | APPLI CATION | AÇIK BOY | KUVVET FI | OEM REF |
| MARK MODEL | YEAR | EXTENDED LENGHT | FORCE LENGHT |
| | | | | | |
| TOYOTA AVENSIS T22 | Mar/97 | REAR | 450 | 600 | 68950-05050 |
| TOYOTA AVENSIS T22 | 97-00 | REAR /LIFTBACK | 498 | 540 | 68960-09050 |
| TOYOTA AVENSIS T25 HB | 2012 | REAR | 485 | 565 | 68950-09140 |
| TOYOTA AVENSIS T25 KOMBI | 2012 | REAR | 445 | 550 | 68950-09150 |
| TOYOTA AYGO | 2012 | REAR | 555 | 305 | 68950-0H010 |
| TOYOTA CARINA I I SW | 87-92 | REAR | 620 | 370 | 68950-29875 |
| TOYOTA CARINA I I LIFTBACK | 83-88 | REAR | 670 | 300 | 68950-29165 |
| TOYOTA Carina Liftback, left side AT171/CT171 | 88-92 | REAR | 770 | 270 | 8192503 |
| TOYOTA carina Liftback, right side AT171/CT171 | 88-92 | REAR | 770 | 370 | 8192504 |
| TOYOTA Carina Estate left side AT171/ST171 | 88-92 | REAR | 620 | 380 | 8192505 |
| TOYOTA Carina E Hatch back left side AT191/ST191 | 92-97 | REAR | 610 | 380 | 8192528 |
| TOYOTA Carina E Hatch back right side AT191/ST191 | 92-97 | REAR | 610 | 380 | 8192529 |
| TOYOTA COROLLA SW | 79-92 | REAR | 620 | 350 | 68950-19275 |
| TOYOTA COROLLA LIFTBACK | 83-88 | REAR | 635 | 330 | 68950-19425 |
| TOYOTA COROLLA COMPACT | 85-88 | HATCH | 575 | 270 | 68950-19545 |
| TOYOTA COROLLA HB | 87-92 | REAR | 585 | 250 | 8895019805 |
| TOYOTA COROLLA VERSO | 02- | REAR | 511 | 550 | 689500W101 |
| TOYOTA COROLLA E12U 3-5DOORS | 2012 | REAR | 468 | 440 | 68950-02040 |
| TOYOTA COROLLA VERSO ZER,ZZE | 2012 | REAR | 531 | 545 | 68950-0F010 |
| TOYOTA COROLLA WAGON E12J | 2012 | REAR | 434 | 585 | 68950-0W140 |
| TOYOTA COROLLA 5 DOORS | Feb/97 | REAR/LIFTBACK | 495 | 500 | |
| TOYOTA Corolla Hatch back E 12 | 02- | REAR | 465 | 440 | 8192546 |
| TOYOTA Corolla Estate E 12 | 02- | REAR | 432 | 585 | 8192541 |
| TOYOTA PRIUS | 2012- | REAR | 493 | 445 | 68950-0W251 |
| TOYOTA YARIS | 2005 | REAR | 500 | 245 | 68950OD011 |
| TOYOTA YARIS | 1999- | REAR | 500 | 245 | 68950-09110 |
| TOYOTA YARIS | 2012 | REAR | 430 | 370 | 68950-0D020 |
| TOYOTA VERSO E12J | 2012 | REAR | 511,5 | 545 | 68950-0W101 |
Brief introduction:
automotivegas struts also called support bar, it can play a role in support, cushioning, there is no stop at trip. It used comfortable, convenient installation. Mainly used in aircraft, automobile, engineering machinery, furniture and office supplies industry.
Delivery:
1000 PCS, 7 days.
Shipment: We can accept your appionted forwarder.
Toyota Yaris Tailgate Gas Struts/Spring,
Toyota STAY ASSY, BACK DOOR Gas Spring, boot-/cargo area 1999/04
OEM: 68950-09110/68950-09120
LH=RH
YEAR:1999/04-
